TEST: SanDisk Ultra 2TB M.2 SSD

Technical data
Manufacturer	SanDisk
Model number	SDSSDH3N-2T00-G26
Storage capacity	2048 GB (1863 GiB)
pSLC-Cache	>300 GB approx.
Read speed	3500 MB/s
Write speed	3300 MB/s
Interface	PCIe 3.0 x4
Connection	M.2 2280
Memory module (NAND)	TLC
DRAM Cache	no
TBW (Total Bytes Written)	1200 Terabyte
Controller	SanDisk A101-000138
Price	ca. 0 AUD (= 0,08 $ / GB)
Paid link	Buy on Amazon

Compare Product

Compared to the top performer*

Read speed

100 %

Write speed

100 %

*) Test result evaluated according to AS SSD Score within the same size.

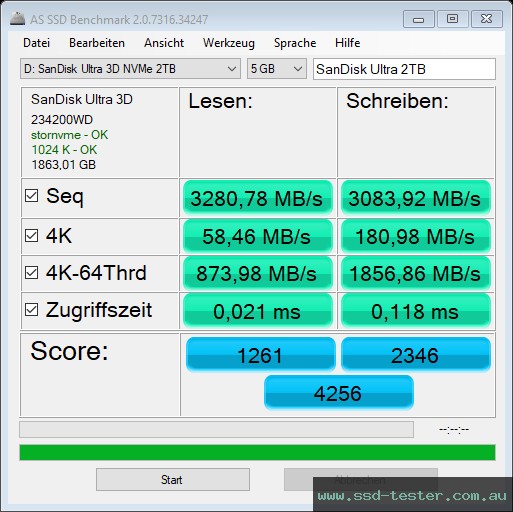

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 4256 points was achieved.

AS SSD	Read:	Write:
Seq in megabytes per second	3280,78 MB/s	3083,92 MB/s
4K in megabytes per second	58,46 MB/s	180,98 MB/s
4K-64Thrd in megabytes per second	873,98 MB/s	1856,86 MB/s
Access time in milliseconds	0,021 ms	0,118 ms
Score	1261	2346
Total score	4256

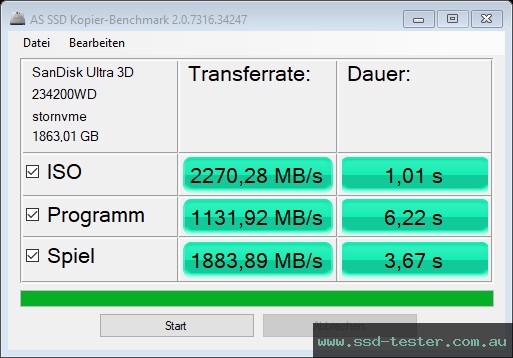

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

• ISO (folder with two large files)
• Program (folder with many small files)
• Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of May 26, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD Copy-Benchmark	Transfer rate:	Duration:
ISO two large files	2270,28 MB/s	1,01 s
Program many small files	1131,92 MB/s	6,22 s
Game small and large files	1883,89 MB/s	3,67 s

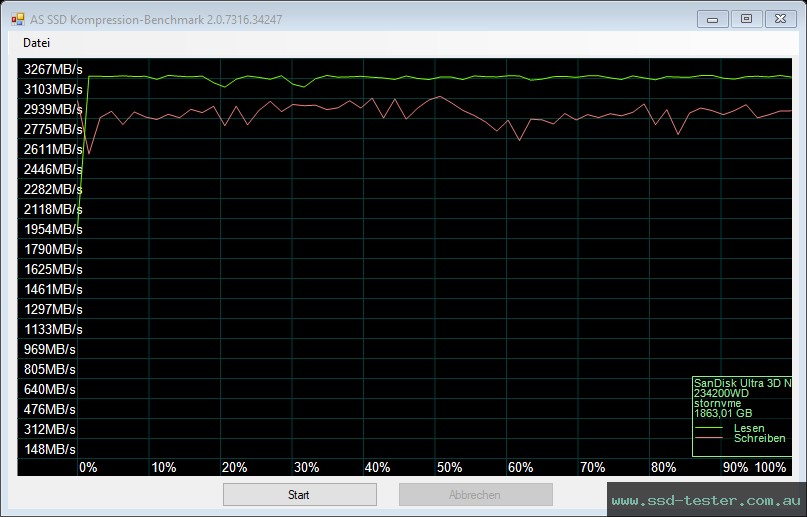

Compression Performance Test

Here, the writing and reading speed of the the SanDisk SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 3500MB/s and 3300MB/s respectively).

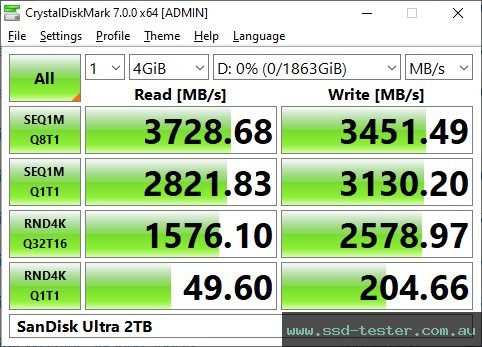

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CDM	Read [MB/s]	Write [MB/s]
SEQ1M Q8T1	3728,68	3451,49
SEQ1M Q1T1	2821,83	3130,20
RND4K Q32T16	1576,10	2578,97
RND4K Q1T1	49,60	204,66

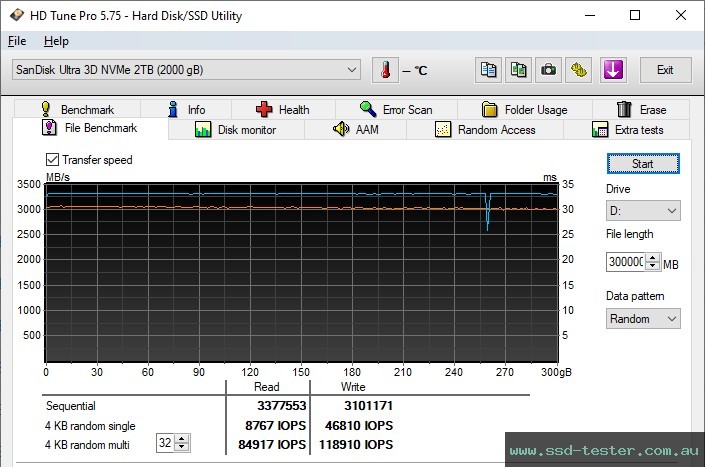

HD Tune Pro Endurance test

A long-term test was performed here to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 300 GB was written to the medium. The exact cache size could not be determined, because the test file did not exhaust the cache (brought it to the limit).At least the test file could be read with an average write speed of 3378 MB/s and written with 3101 MB/s.

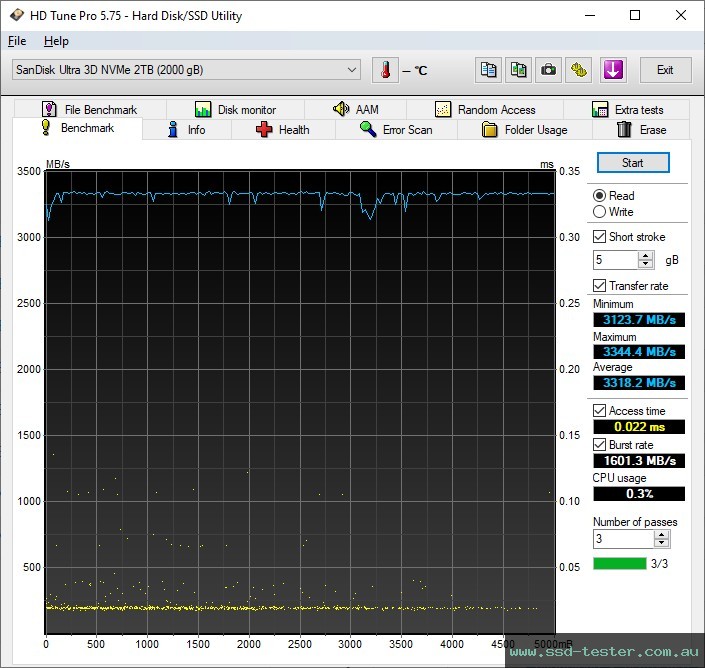

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the SanDisk M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

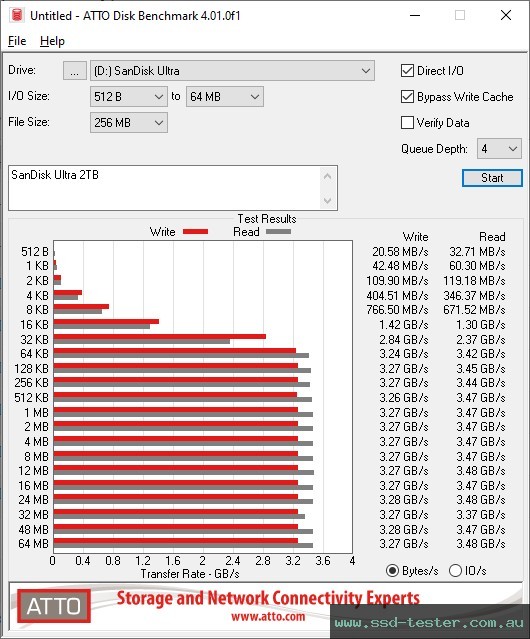

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the SanDisk M.2 SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

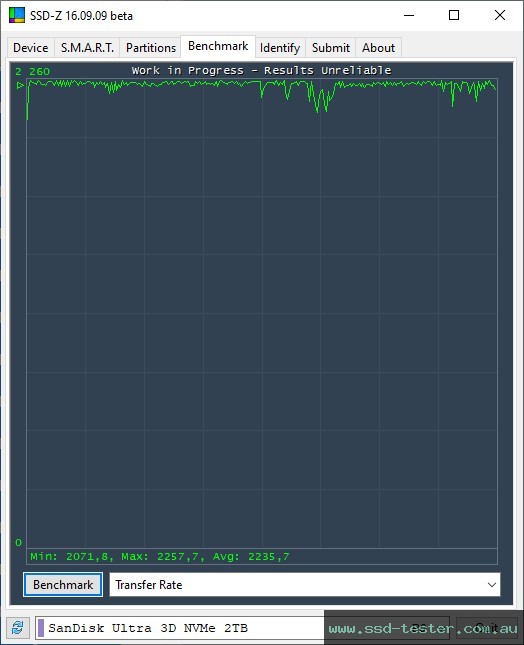

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the SanDisk M.2 SSD here. is written. The transfer data is displayed. The more constant the line, the better.

The benchmark test was performed on May 26, 2025.
Information about the test system can be found at the bottom of the home page.
