TEST: Samsung 990 EVO Plus 2TB M.2 SSD

Here you can find a detailed performance and benchmark test of the M.2 NVMe SSD 990 EVO Plus with 2TB (MZ-V9S2T0B) from Samsung.
Score
8485
Price/GB
0,07 €


Technical data
Image 990 EVO Plus
Manufacturer Samsung
Model number MZ-V9S2T0B
Storage capacity 2048 GB (1863 GiB)
pSLC-Cache 220 GB approx.
Read speed 7250 MB/s
Write speed 6300 MB/s
Interface PCIe 4.0 x4
Connection M.2 2280
Memory module (NAND) TLC
DRAM Cache no
TBW (Total Bytes Written) 1200 Terabyte
Controller Samsung Piccolo/​S4LY022
Price ca. 0 AUD (= 0,07 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
98 %
Write speed
85 %

*) Test result evaluated according to AS SSD Score within the same size.

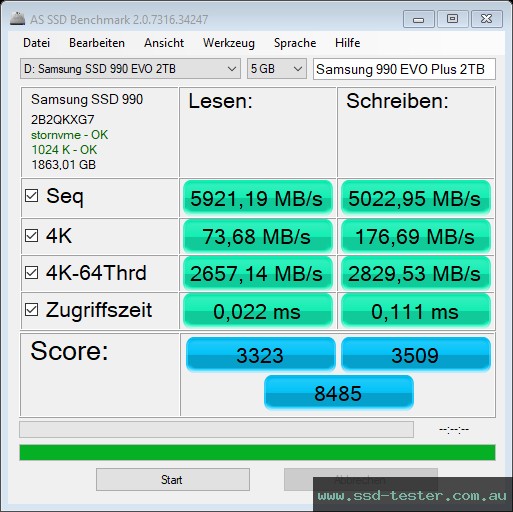

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 8485 points was achieved.

AS SSD TEST: Samsung 990 EVO Plus 2TB

AS SSD Read: Write:
Seq
in megabytes per second
5921,19 MB/s
5022,95 MB/s
4K
in megabytes per second
73,68 MB/s
176,69 MB/s
4K-64Thrd
in megabytes per second
2657,14 MB/s
2829,53 MB/s
Access time
in milliseconds
0,022 ms
0,111 ms
Score
3323
3509
Total score
8485

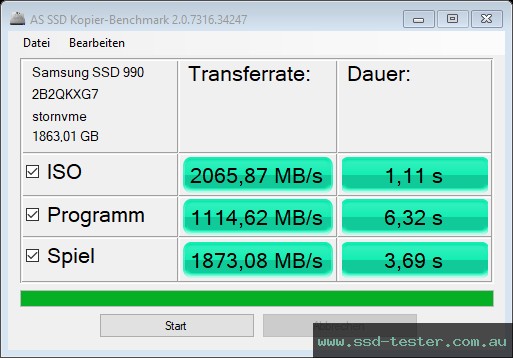

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of April 28, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: Samsung 990 EVO Plus 2TB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
2065,87 MB/s
1,11 s
Program
many small files
1114,62 MB/s
6,32 s
Game
small and large files
1873,08 MB/s
3,69 s

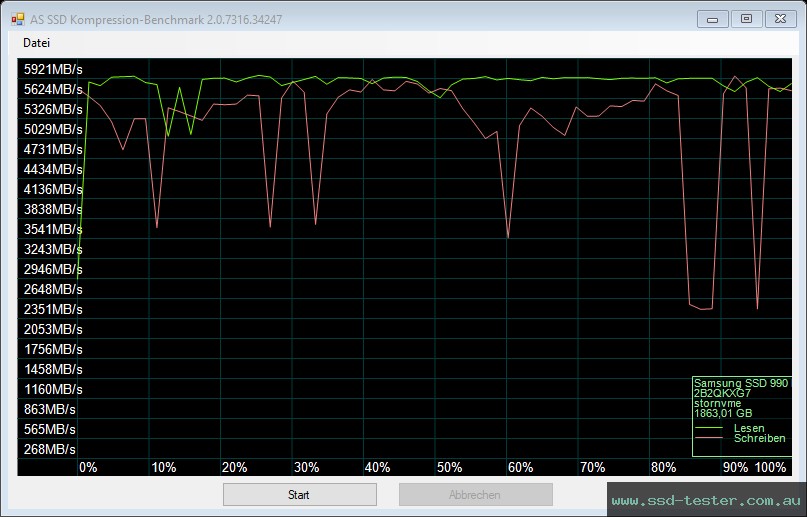

Compression Performance Test

Here, the writing and reading speed of the the Samsung SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 7250MB/s and 6300MB/s respectively).

AS SSD TEST: Samsung 990 EVO Plus 2TB

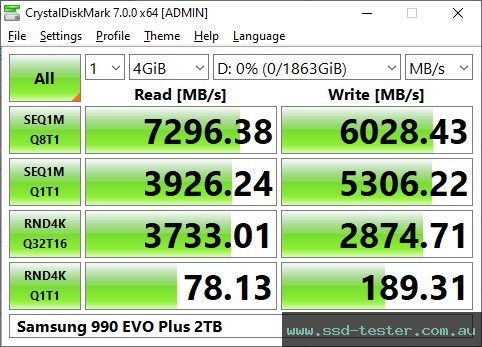

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: Samsung 990 EVO Plus 2TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
7296,38
6028,43
SEQ1M
Q1T1
3926,24
5306,22
RND4K
Q32T16
3733,01
2874,71
RND4K
Q1T1
78,13
189,32

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
6.958,40
5.749,20
SEQ1M
Q1T1
3.744,40
5.060,40
RND4K
Q32T16
911.379,00
701.833,00
RND4K
Q1T1
19.074,00
46.219,50

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1.149,07
1.388,93
SEQ1M
Q1T1
266,92
197,41
RND4K
Q32T16
546,49
728,41
RND4K
Q1T1
52,28
21,51

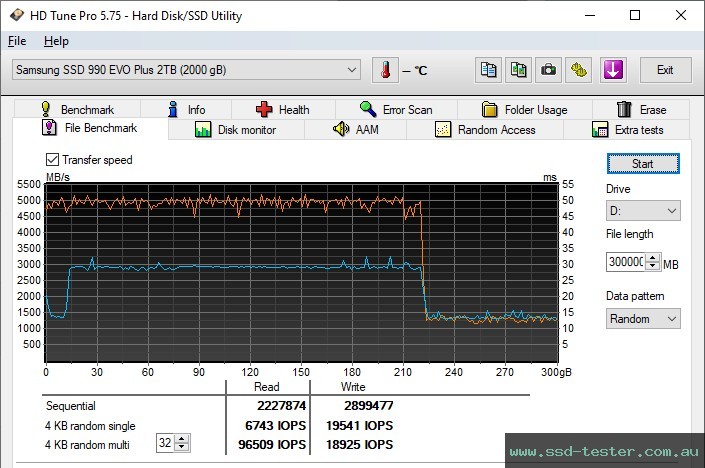

HD Tune Pro Endurance test

A long-term test was performed here to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 300 GB was written to the medium. After approx. 220 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 2228 MB/s and written with 2899 MB/s.

HD Tune Endurance Test TEST: Samsung 990 EVO Plus 2TB

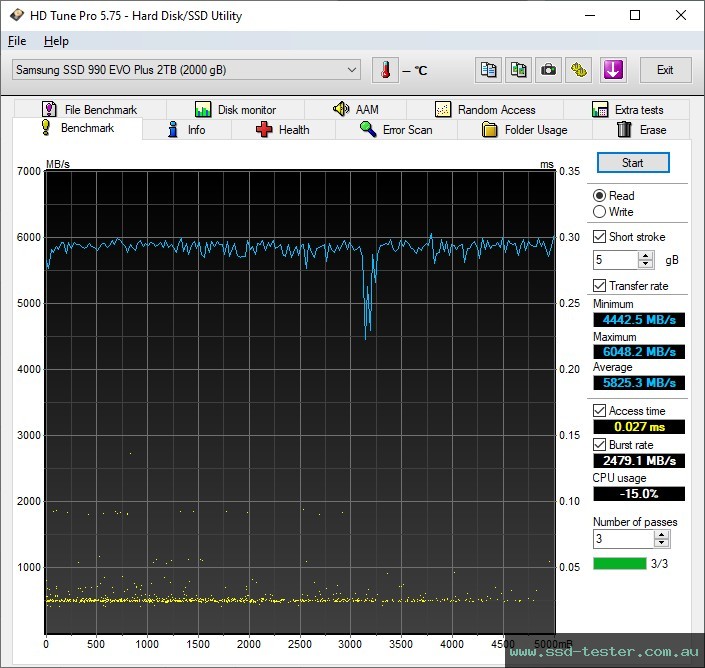

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the Samsung M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

HD Tune TEST: Samsung 990 EVO Plus 2TB

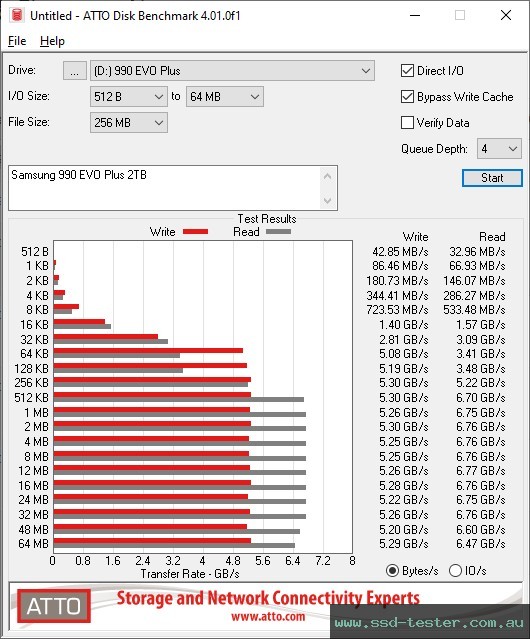

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Samsung M.2 SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

ATTO Disk Benchmark TEST: Samsung 990 EVO Plus 2TB

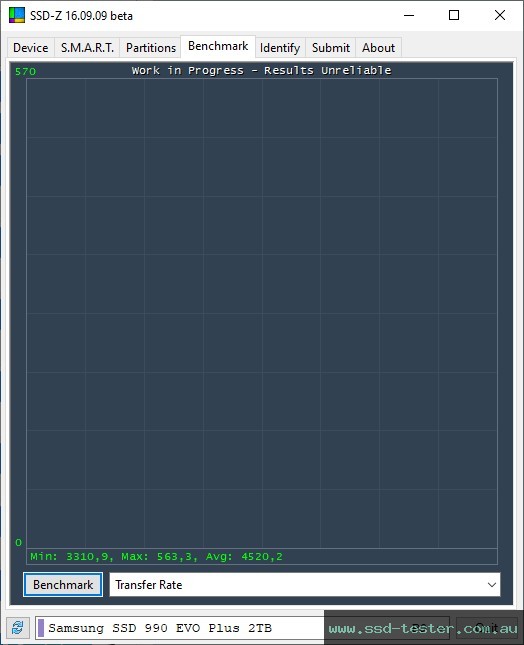

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Samsung M.2 SSD here. is written. The transfer data is displayed. The more constant the line, the better. Unfortunately the tool does not work correctly from about 5,000 MB/s and no line (and partly wrong min and max data) is displayed.

SSD-Z TEST: Samsung 990 EVO Plus 2TB


Information about the test system can be found at the bottom of the home page.
