TEST: Biwin Black Opal NV7400 2TB M.2 SSD

Here you can find a detailed performance and benchmark test of the M.2 NVMe SSD Black Opal NV7400 with 2TB (NV7400-2TB) from Biwin.
Score
6735
Price/GB
0,06 €


Technical data

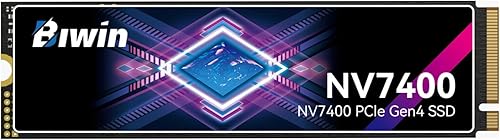

Image Black Opal NV7400
Manufacturer Biwin
Model number NV7400-2TB
Storage capacity 2048 GB (1908 GiB)
pSLC-Cache >300 GB approx.
Read speed 7450 MB/s
Write speed 6500 MB/s
Interface PCIe 4.0 x4
Connection M.2 2280
Memory module (NAND) TLC
DRAM Cache no
TBW (Total Bytes Written) 2000 Terabyte
Controller Maxio MAP1602
Price ca. 0 AUD (= 0,06 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
99 %
Write speed
94 %

*) Test result evaluated according to AS SSD Score within the same size.

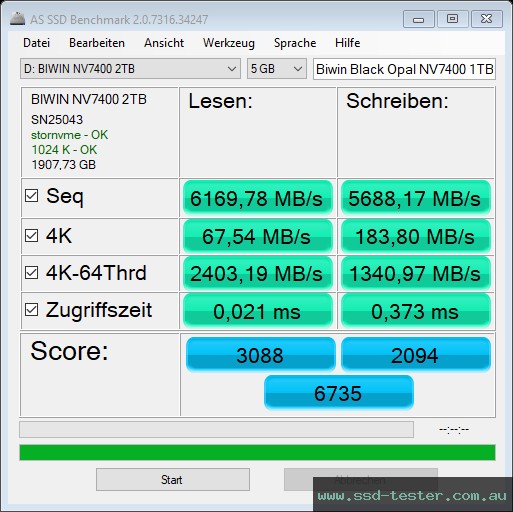

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 6735 points was achieved.

AS SSD TEST: Biwin Black Opal NV7400 2TB

AS SSD Read: Write:
Seq
in megabytes per second
6169,78 MB/s
5688,17 MB/s
4K
in megabytes per second
67,54 MB/s
183,80 MB/s
4K-64Thrd
in megabytes per second
2403,19 MB/s
1340,97 MB/s
Access time
in milliseconds
0,021 ms
0,373 ms
Score
3088
2094
Total score
6735

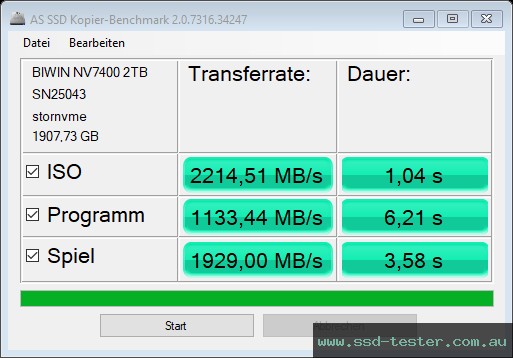

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of May 02, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: Biwin Black Opal NV7400 2TB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
2214,51 MB/s
1,04 s
Program
many small files
1133,44 MB/s
6,21 s
Game
small and large files
1929,00 MB/s
3,58 s

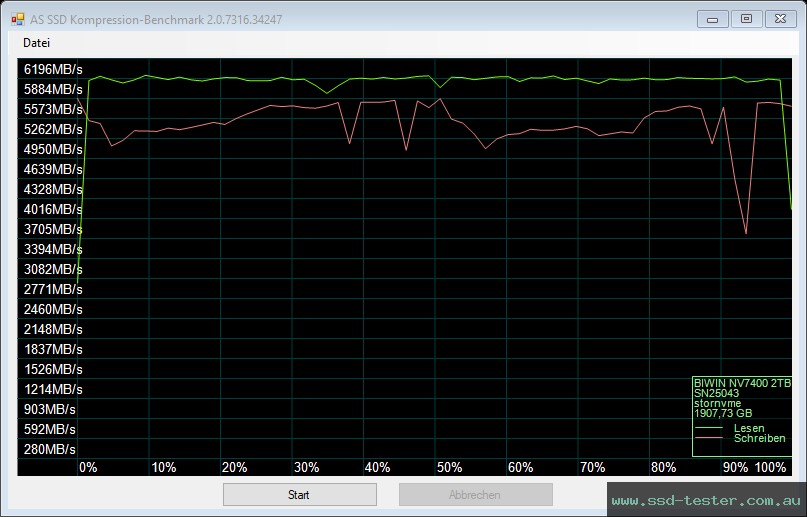

Compression Performance Test

Here, the writing and reading speed of the the Biwin SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 7450MB/s and 6500MB/s respectively).

AS SSD TEST: Biwin Black Opal NV7400 2TB

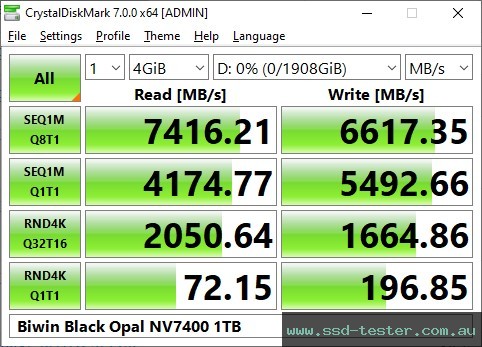

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: Biwin Black Opal NV7400 2TB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
7416,21
6617,35
SEQ1M
Q1T1
4174,77
5492,66
RND4K
Q32T16
2050,64
1664,86
RND4K
Q1T1
72,15
196,85

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
7.072,70
6.310,80
SEQ1M
Q1T1
3.981,40
5.238,20
RND4K
Q32T16
500.643,00
406.460,00
RND4K
Q1T1
17.615,50
48.058,30

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1.130,50
1.265,12
SEQ1M
Q1T1
250,96
190,70
RND4K
Q32T16
1.021,41
1.258,52
RND4K
Q1T1
56,63
20,69

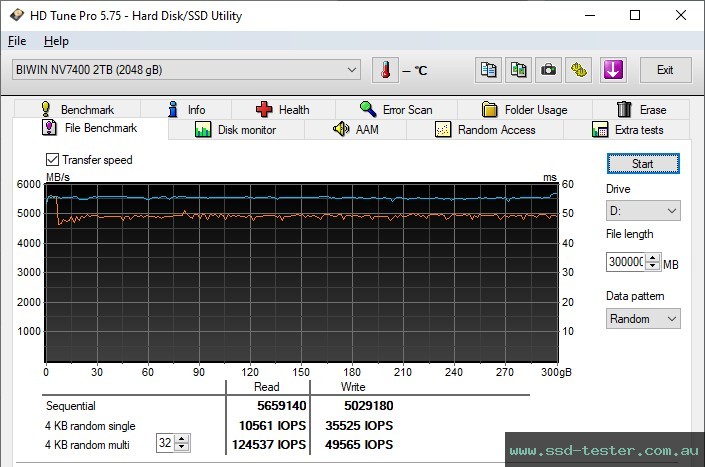

HD Tune Pro Endurance test

A long-term test was performed here to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 300 GB was written to the medium. The exact cache size could not be determined, because the test file did not exhaust the cache (brought it to the limit).At least the test file could be read with an average write speed of 5659 MB/s and written with 5029 MB/s.

HD Tune Endurance Test TEST: Biwin Black Opal NV7400 2TB

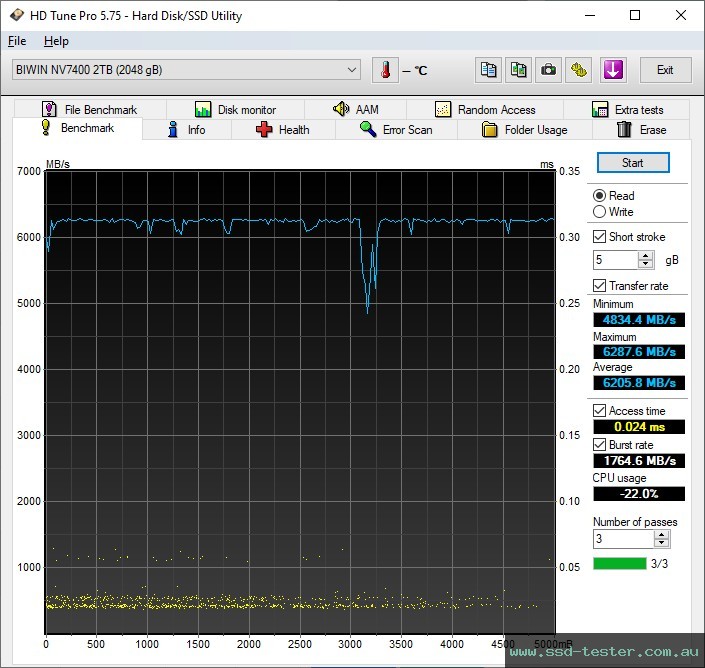

HD Tune Pro Benchmark

HD Tune writes a 5 GB file to the Biwin M.2 SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

HD Tune TEST: Biwin Black Opal NV7400 2TB

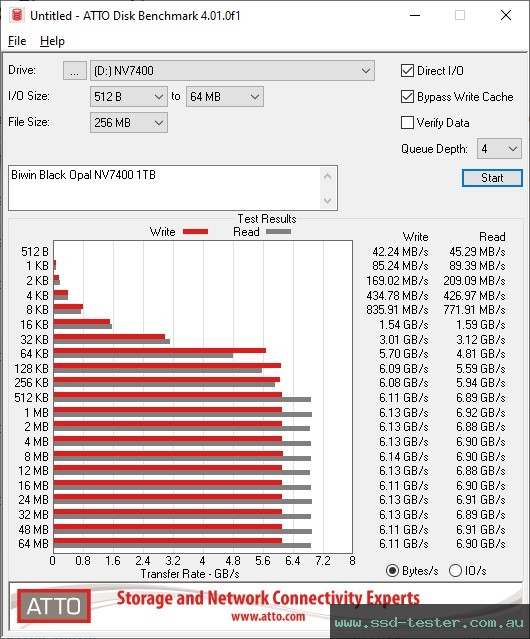

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Biwin M.2 SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

ATTO Disk Benchmark TEST: Biwin Black Opal NV7400 2TB

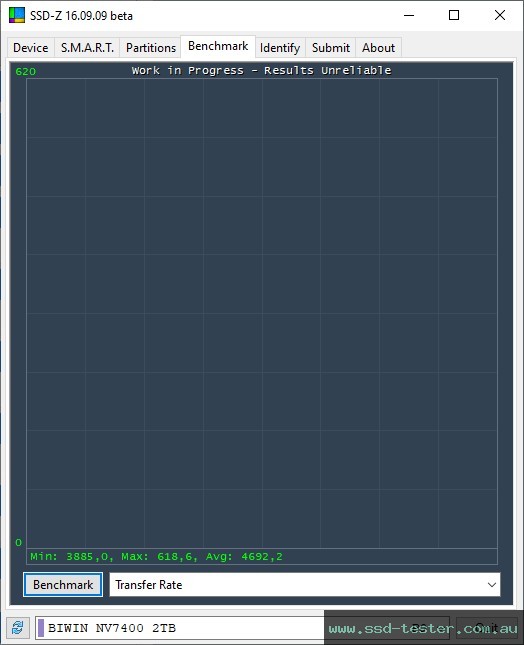

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Biwin M.2 SSD here. is written. The transfer data is displayed. The more constant the line, the better. Unfortunately the tool does not work correctly from about 5,000 MB/s and no line (and partly wrong min and max data) is displayed.

SSD-Z TEST: Biwin Black Opal NV7400 2TB


Information about the test system can be found at the bottom of the home page.
