TEST: ADATA XPG Gammix S50 Core 500GB M.2 SSD

Here you can find a detailed performance and benchmark test of the M.2 NVMe SSD XPG Gammix S50 Core with 500GB (SGAMMIXS50C-500G-CS) from ADATA.
Score
5077
Price/GB
0,11 $


Technical data
Image XPG Gammix S50 Core
Manufacturer ADATA
Model number SGAMMIXS50C-500G-CS
Storage capacity 500 GB (466 GiB)
pSLC-Cache 182 GB approx.
Read speed 3500 MB/s
Write speed 2200 MB/s
Interface PCIe 4.0 x4
Connection M.2 2280
DRAM Cache no
TBW (Total Bytes Written) 300 Terabyte
Controller Realtek RTS5770DL
Price ca. 0 AUD (= 0,11 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
57 %
Write speed
73 %

*) Test result evaluated according to AS SSD Score within the same size.

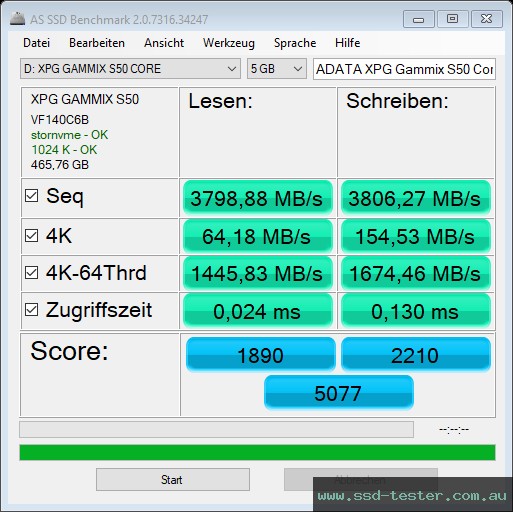

AS SSD Benchmark

Standard performance test

The standard test was performed with a 5 GB file. A total score of 5077 points was achieved.

AS SSD TEST: ADATA XPG Gammix S50 Core 500GB

AS SSD Read: Write:
Seq
in megabytes per second
3798,88 MB/s
3806,27 MB/s
4K
in megabytes per second
64,18 MB/s
154,53 MB/s
4K-64Thrd
in megabytes per second
1445,83 MB/s
1674,46 MB/s
Access time
in milliseconds
0,024 ms
0,130 ms
Score
1890
2210
Total score
5077

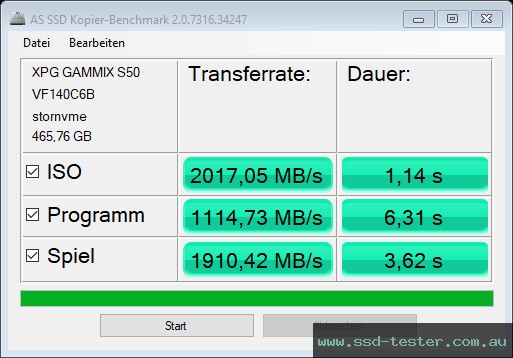

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of July 21, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: ADATA XPG Gammix S50 Core 500GB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
2017,05 MB/s
1,14 s
Program
many small files
1114,73 MB/s
6,31 s
Game
small and large files
1910,42 MB/s
3,62 s

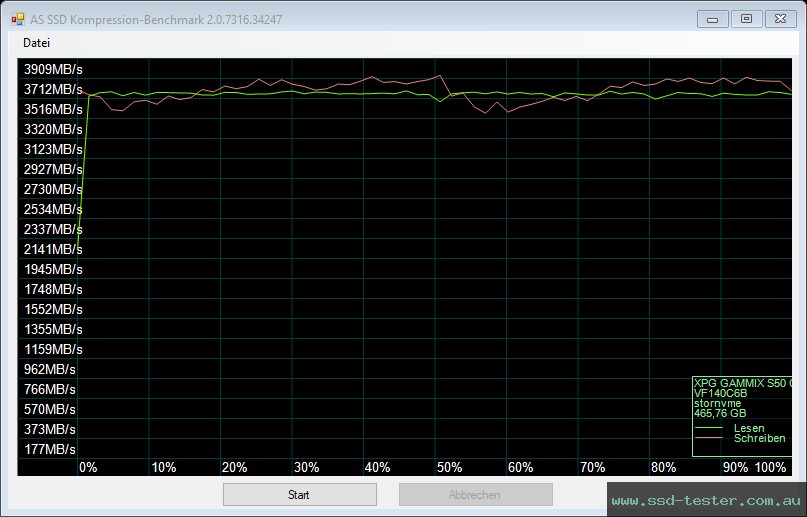

Compression Performance Test

Here, the writing and reading speed of the the ADATA SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 3500MB/s and 2200MB/s respectively).

AS SSD TEST: ADATA XPG Gammix S50 Core 500GB

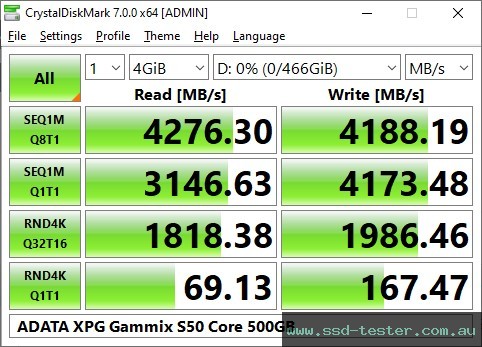

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: ADATA XPG Gammix S50 Core 500GB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
4276,30
4188,19
SEQ1M
Q1T1
3146,63
4173,48
RND4K
Q32T16
1818,38
1986,46
RND4K
Q1T1
69,13
167,47

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
4.078,20
3.994,20
SEQ1M
Q1T1
3.000,90
3.980,10
RND4K
Q32T16
443.941,00
484.975,00
RND4K
Q1T1
16.877,90
40.886,00

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
1.959,77
1.999,35
SEQ1M
Q1T1
333,05
250,98
RND4K
Q32T16
1.150,10
1.053,18
RND4K
Q1T1
59,14
24,34

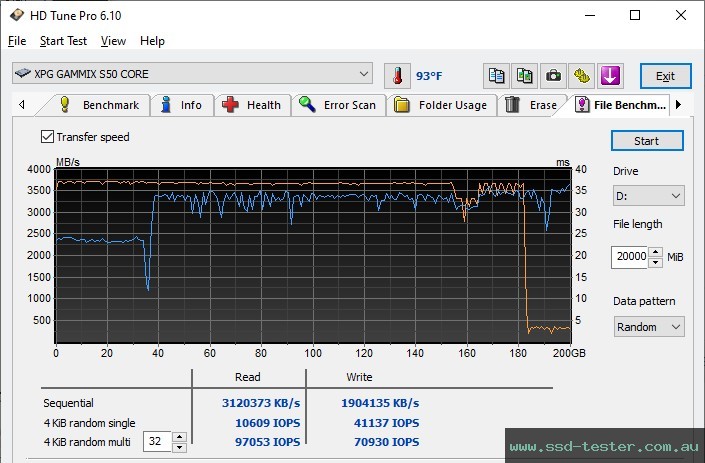

HD Tune Pro Endurance test

A long-term test was performed here to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 200 GB was written to the medium. After approx. 182 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 3120 MB/s and written with 1904 MB/s.

HD Tune Endurance Test TEST: ADATA XPG Gammix S50 Core 500GB

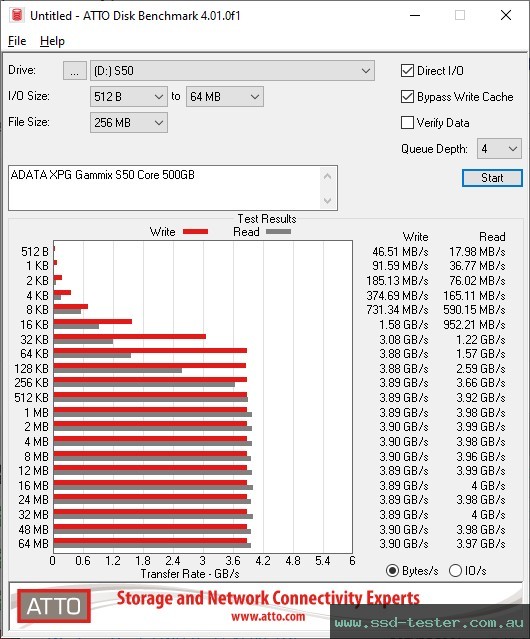

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the ADATA M.2 SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

ATTO Disk Benchmark TEST: ADATA XPG Gammix S50 Core 500GB

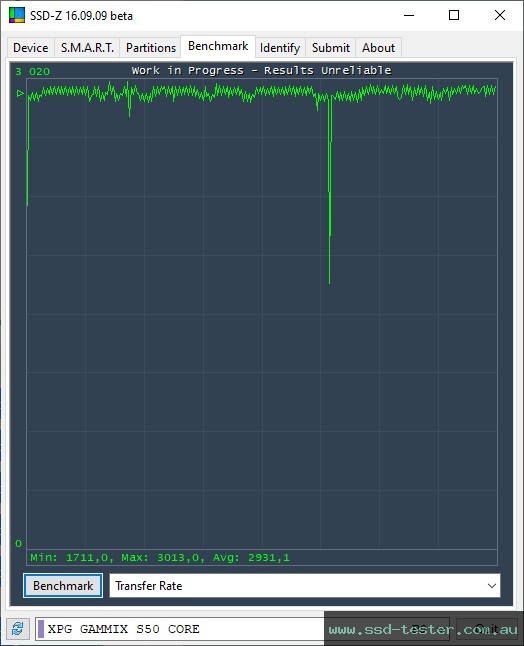

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the ADATA M.2 SSD here. is written. The transfer data is displayed. The more constant the line, the better.

SSD-Z TEST: ADATA XPG Gammix S50 Core 500GB


Information about the test system can be found at the bottom of the home page.
