TEST: Acer SA100 240GB SATA SSD

Here you can find a detailed performance and benchmark test of the SATA SSD SA100 with 240GB (SA100-240GB) from Acer.
Score
648
Price/GB
0,08 €


Technical data
Image SA100
Manufacturer Acer
Model number SA100-240GB
Storage capacity 240 GB (224 GiB)
pSLC-Cache 60 GB approx.
Read speed 549 MB/s
Write speed 449 MB/s
Interface SATA 6 Gbps
Connection 2.5"
Memory module (NAND) TLC
TBW (Total Bytes Written) 80 Terabyte
Controller Maxio MAS1102
Price ca. 0 AUD (= 0,08 $ / GB)
Paid link Buy on Amazon
Compare Product
Compared to the top performer*
Read speed
97 %
Write speed
93 %

*) Test result evaluated according to AS SSD Score within the same size.

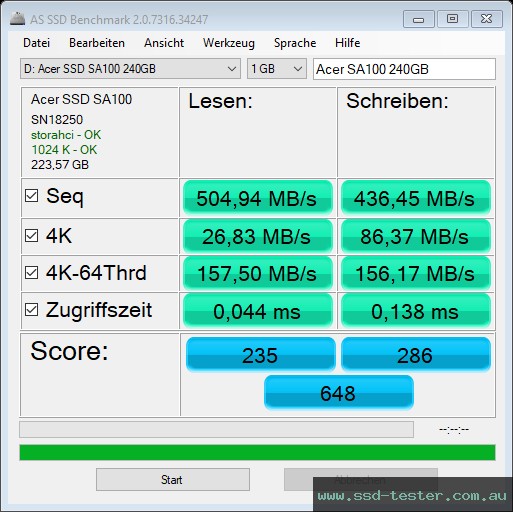

AS SSD Benchmark

Standard performance test

The standard test was performed with a 1 GB file. A total score of 648 points was achieved.

AS SSD TEST: Acer SA100 240GB

AS SSD Read: Write:
Seq
in megabytes per second
504,94 MB/s
436,45 MB/s
4K
in megabytes per second
26,83 MB/s
86,37 MB/s
4K-64Thrd
in megabytes per second
157,50 MB/s
156,17 MB/s
Access time
in milliseconds
0,044 ms
0,138 ms
Score
235
286
Total score
648

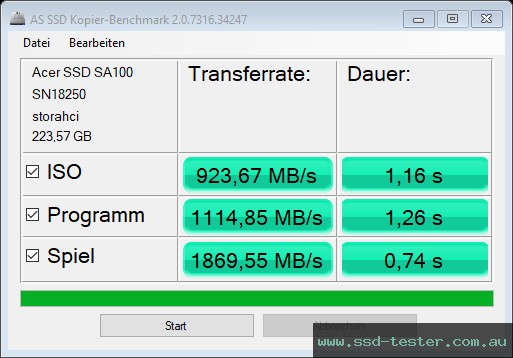

Copy Performance Test

A common everyday situation is simulated here. Three test folders are created:

  • ISO (folder with two large files)
  • Program (folder with many small files)
  • Game (folder with small and large files)

The three folders are copied using the Windows Copy command (the cache remains enabled). The practical test of April 25, 2025 shows the performance for simultaneous write and read operations. The lower the duration, the better the performance.

AS SSD TEST: Acer SA100 240GB
AS SSD Copy-Benchmark Transfer rate: Duration:
ISO
two large files
923,67 MB/s
1,16 s
Program
many small files
1114,85 MB/s
1,26 s
Game
small and large files
1869,55 MB/s
0,74 s

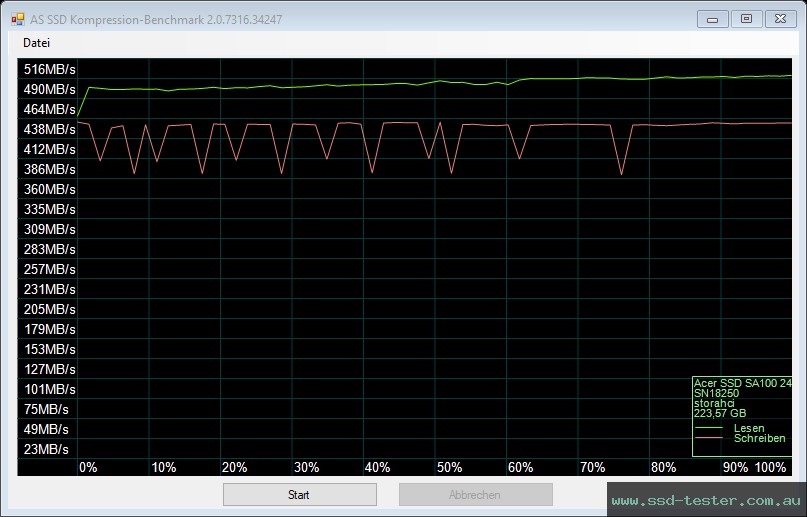

Compression Performance Test

Here, the writing and reading speed of the the Acer SATA SSDSSD is measured depending on the compressibility of the data (according to the manufacturer, these should be 549MB/s and 449MB/s respectively).

AS SSD TEST: Acer SA100 240GB

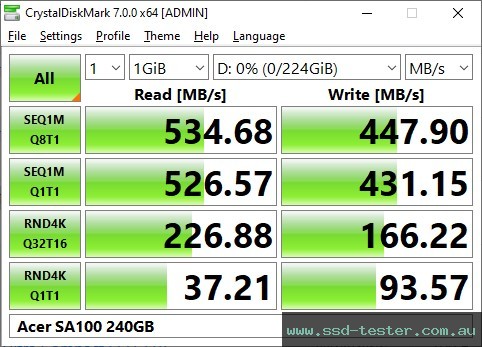

CrystalDiskMark Benchmark

Here, two sequential and two random performance tests are performed, similar to the ones performed on the AS SSD.

CrystalDiskMark Benchmark TEST: Acer SA100 240GB
CDM Read [MB/s] Write [MB/s]
SEQ1M
Q8T1
534,68
447,90
SEQ1M
Q1T1
526,57
431,16
RND4K
Q32T16
226,88
166,22
RND4K
Q1T1
37,21
93,57

Input/Output operations per second

CDM Read [IOPS] Write [IOPS]
SEQ1M
Q8T1
509,90
427,10
SEQ1M
Q1T1
502,20
411,20
RND4K
Q32T16
55.390,40
40.581,50
RND4K
Q1T1
9.085,40
22.843,80

Average latency

CDM Read [µs] Write [µs]
SEQ1M
Q8T1
15.657,30
18.661,40
SEQ1M
Q1T1
1.990,58
2.431,08
RND4K
Q32T16
9.212,04
12.577,60
RND4K
Q1T1
109,91
43,67

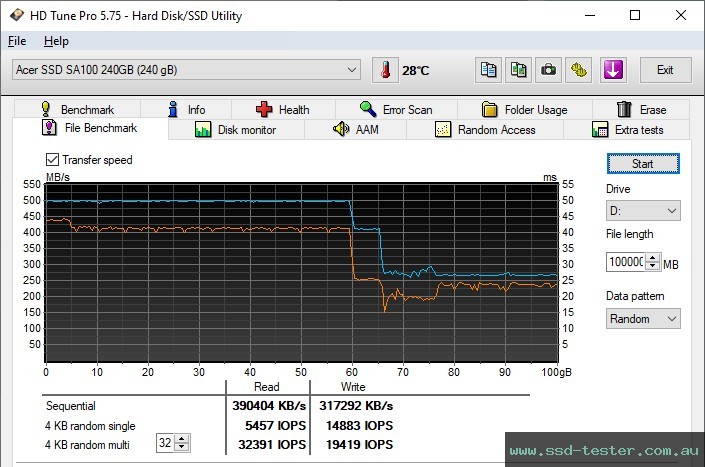

HD Tune Pro Endurance test

A long-term test was performed here to make full use of the memory capacity. You can see when a cache is full and the writing performance decreases. A test file of 100 GB was written to the medium. After approx. 60 GB, the pSLC-Cache was full and the performance was throttled.
At least the test file could be read with an average write speed of 390 MB/s and written with 317 MB/s.

HD Tune Endurance Test TEST: Acer SA100 240GB

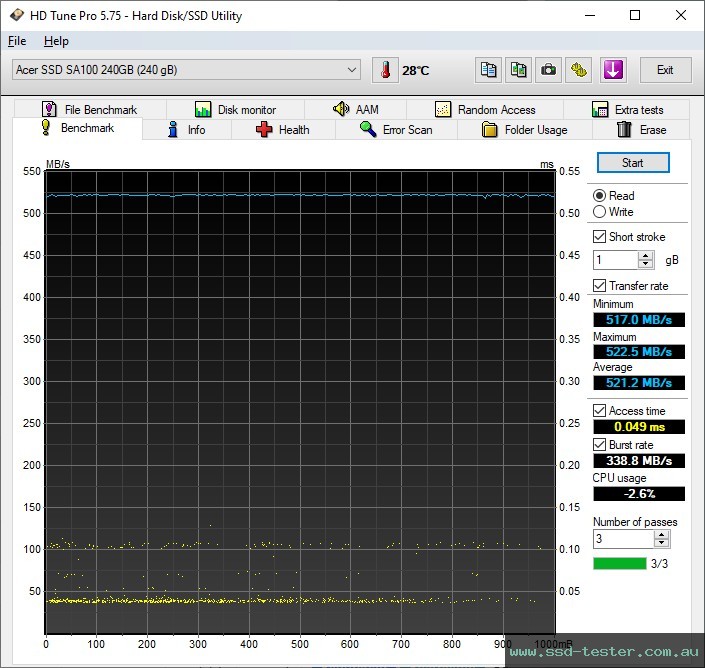

HD Tune Pro Benchmark

HD Tune writes a 1 GB file to the Acer SATA SSD. The transfer data of the read speed is displayed graphically. The minimum, maximum and average values are also determined. The determined access time and burst rate are also displayed.

HD Tune TEST: Acer SA100 240GB

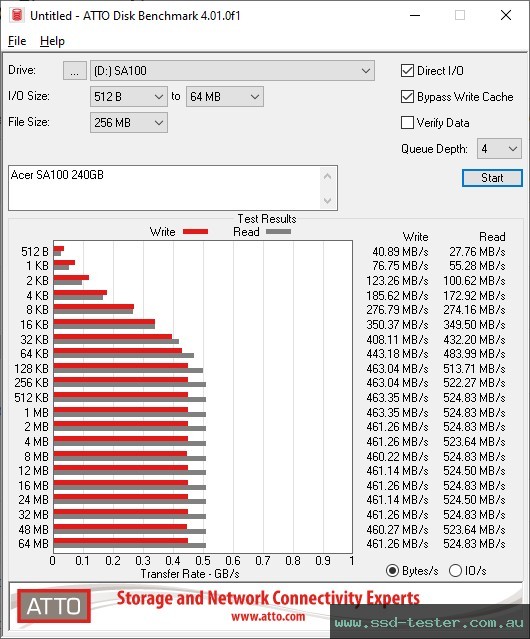

ATTO Disk Benchmark

Here, a 256 MB file is written several times to the Acer SATA SSD . The I/O block size varies (from 512 bytes to 64 megabytes). The larger the blocks, the faster they can be written and read.

ATTO Disk Benchmark TEST: Acer SA100 240GB

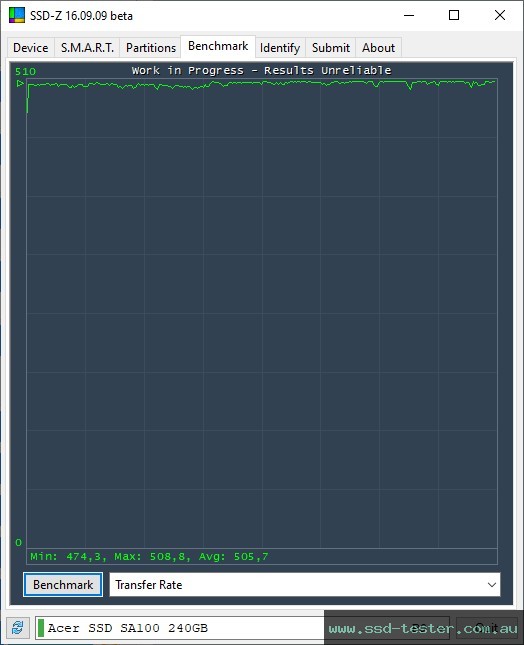

SSD-Z Benchmark

Similar to HD Tune, a 500 MB file is written to the Acer SATA SSD here. is written. The transfer data is displayed. The more constant the line, the better.

SSD-Z TEST: Acer SA100 240GB


Information about the test system can be found at the bottom of the home page.
